产品规格
Produet speeifieations
订货号 Item No. | 系列长度 Slide Length | 抽屉长度(L1) Drawer Length(L1) | 最小拒深(L) Min Cabinet Depth | 包装单位(套)/箱 Packing Unit(set)/Box |
---|---|---|---|---|
HH-Y2HTJ-12" | 276mm | 270mm | 290mm | 10 |
HH-Y2HTJ-12" | 306mm | 300mm | 320mm | 10 |
HH-Y2HTJ-14" | 356mm | 350mm | 370mm | 10 |
HH-Y2HTJ-16" | 406mm | 400mm | 420mm | 10 |
HH-Y2HTJ-18" | 456mm | 450mm | 470mm | 10 |
HH-Y2HTJ-20" | 506mm | 500mm | 520mm | 10 |
HH-Y2HTJ-22" | 556mm | 550mm | 570mm | 10 |

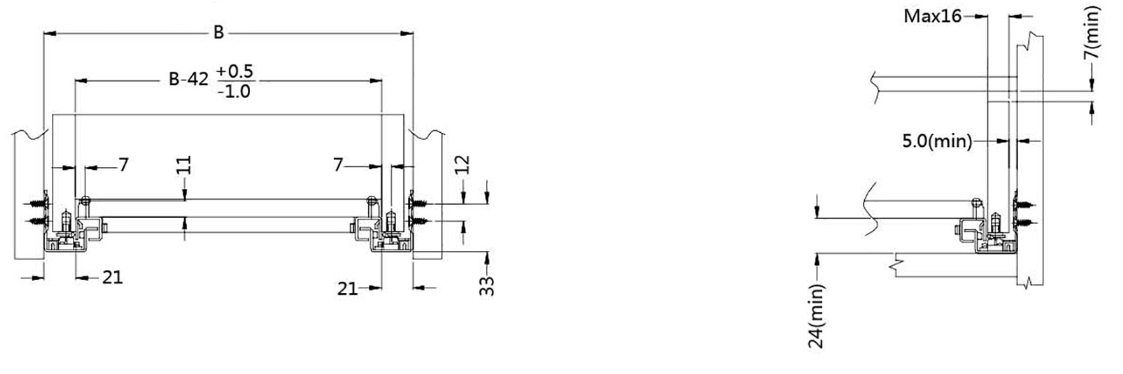

柜体内的空间需求
Cabinet Inside Space

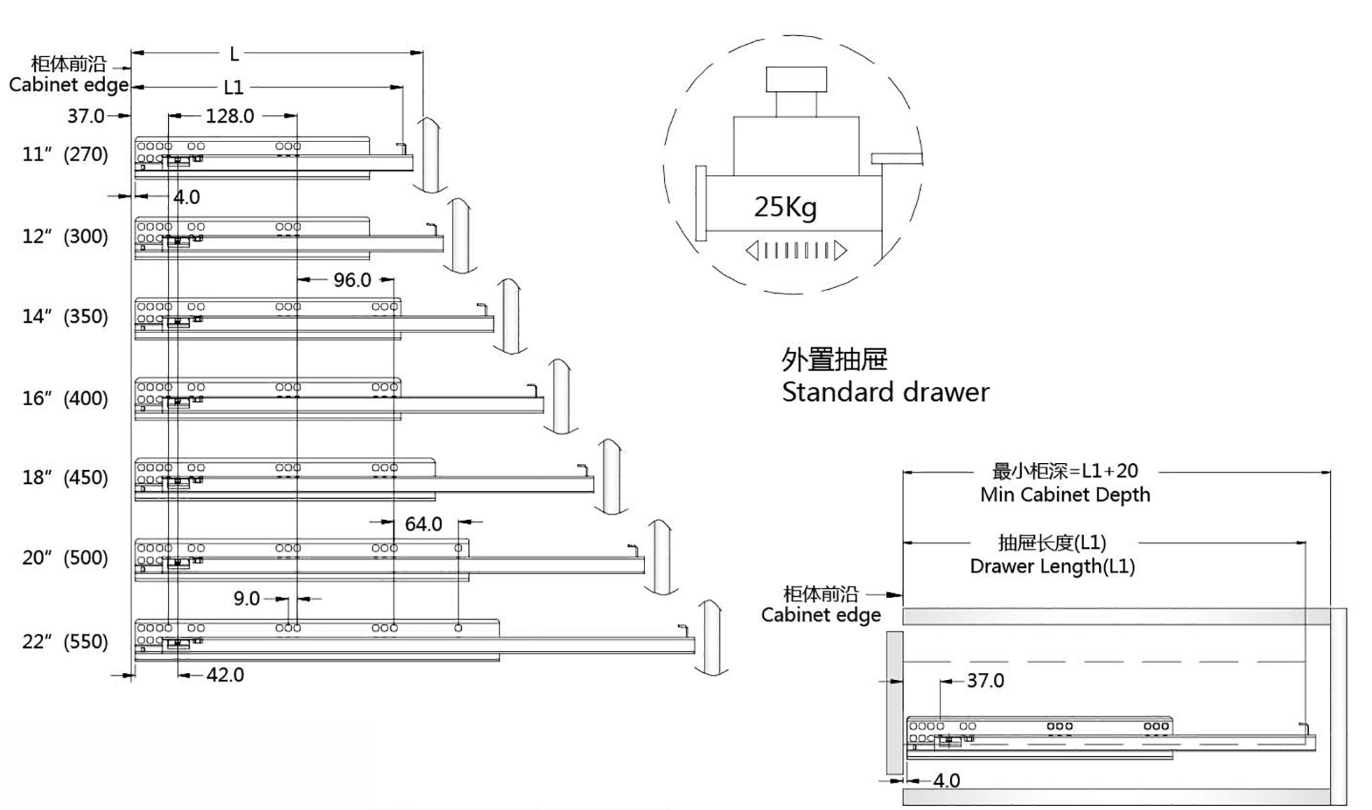

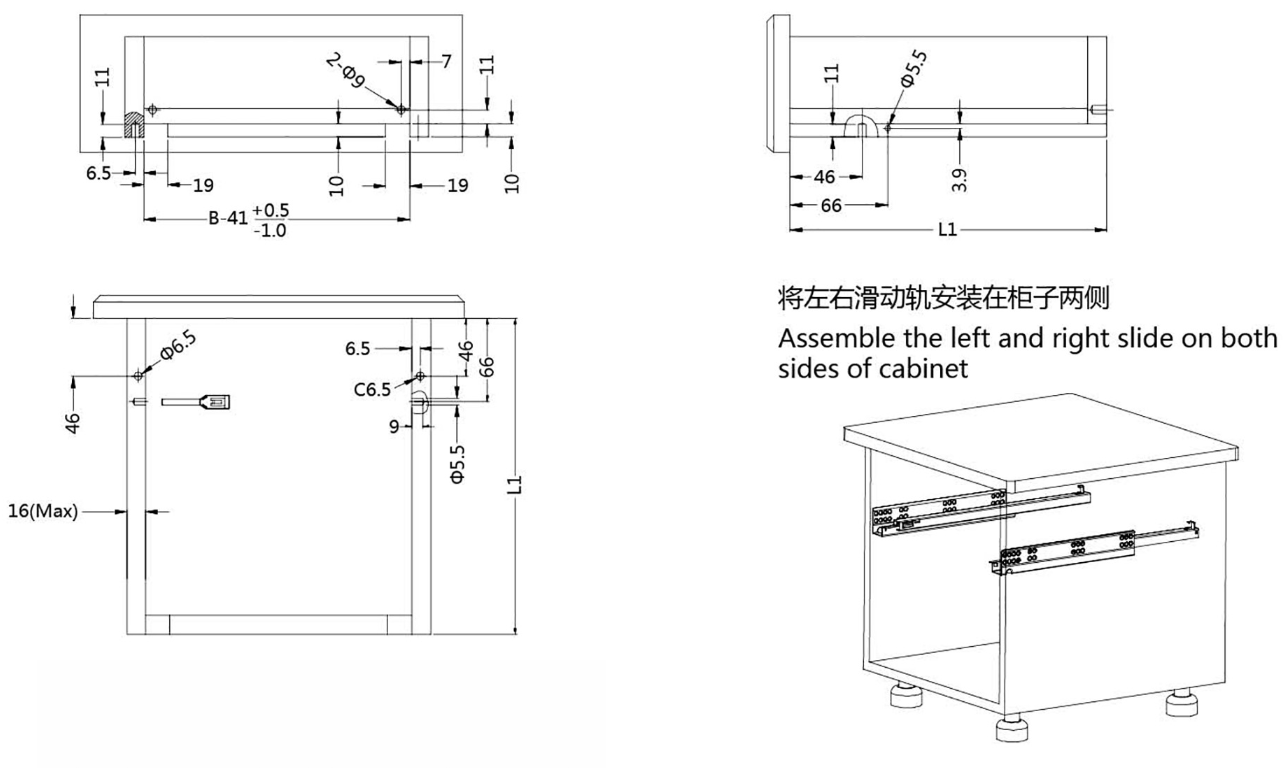

抽屉尺寸及打孔图
Drawer Size and drilling diagram

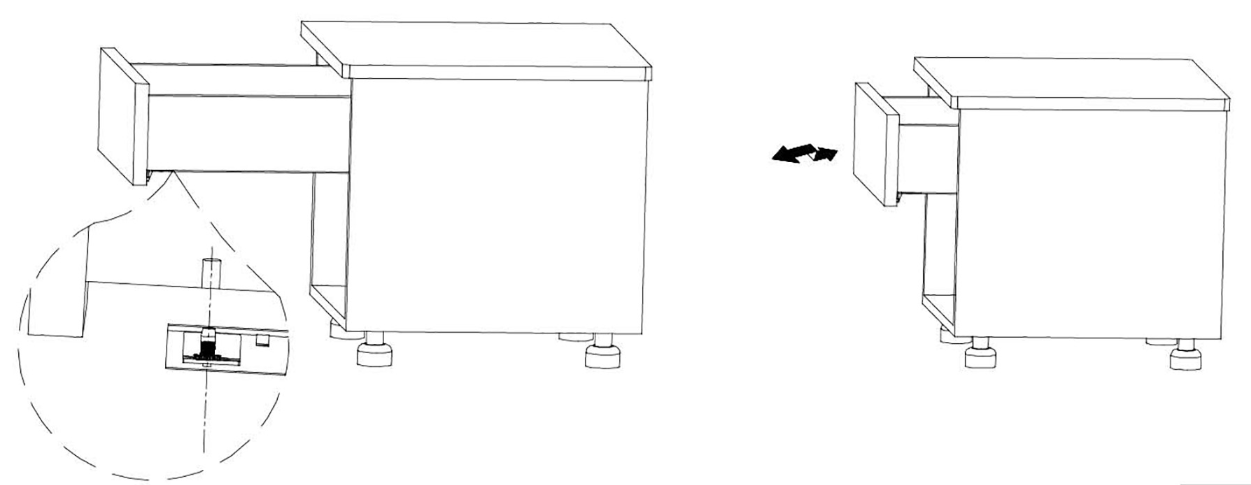

将抽屉放在滑动轨上,调节螺丝钉插入抽屉孔内,与然后推入柜体,安装完成 The drawer on the slide,regulating serew intothe drawer hole, | 将抽屉推入,缓冲关闭 Push the drawer drawer damPing elosed |
